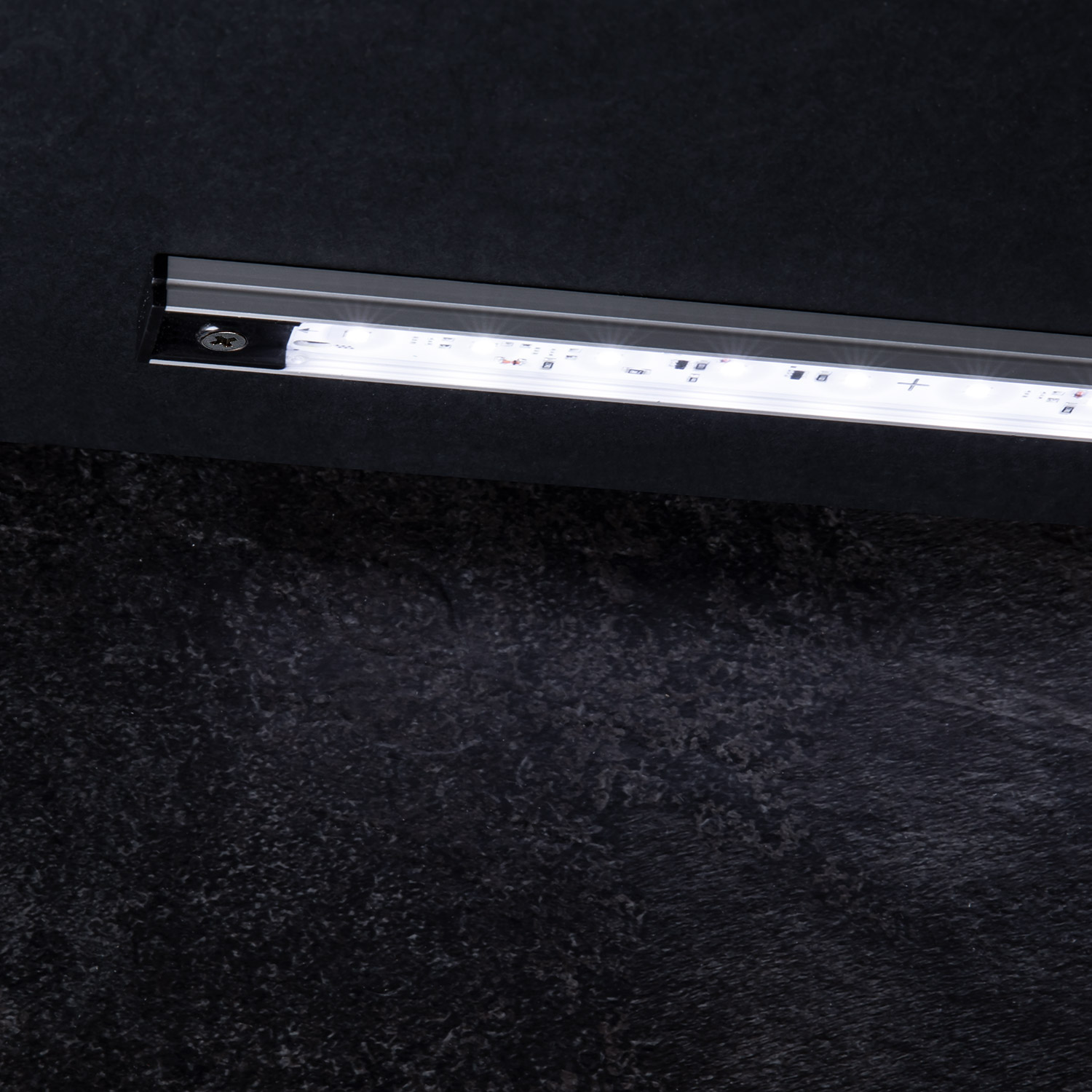

LED Profilsystemleuchte F-100 Heavy Duty Anwendung
Simple and convenient. Use the watchlist function.

Save your desired products with our watchlist and easily send us a request. This way, you keep an overview and quickly receive a personalized offer.

F-100 Heavy Duty

The F-100 Heavy Duty is a fully encapsulated LED light in a slim aluminum profile, specifically designed for use in outdoor environments under demanding conditions. With its compact profile (only 8.3 x 20 mm), it is the perfect solution for applications where robustness, waterproofing, and durability are required.

Key features of the F-100 Heavy Duty:
+ Waterproof and fully encapsulated – ideal for permanent outdoor use
+ Resistant aluminum profile – protects against moisture, dust, and mechanical influences
+ Compact design – only 8.3 mm high and 20 mm wide
+ Robust construction – designed for demanding work environments
+ Available in three standard lengths – custom lengths available on request

Typical applications of the F-100 Heavy Duty:
+ Firefighting vehicles
+ Silo trucks and trailers
+ Ambulances
+ Outdoor workstations
+ Yachts and boats
+ Commercial vehicles for outdoor use

Special version F-100 Heavy Duty:
+ F-100.2 ML with a third mounting hole

For indoor applications, we recommend the F-100 standard.

Highlights

+ Anodized aluminum profile
+ Waterproof according to IP67 due to full encapsulation
+ Available in three lengths (500, 955, and 1410 mm)
+ Special version with center hole (977 mm with ML)
+ Heavy Duty available only in cool white

Simple and convenient. Use the watchlist function.

Save your desired products with our watchlist and easily send us a request. This way, you keep an overview and quickly receive a personalized offer.

Clear
SKU: F-100 Heavy Duty Categories: , ,
Exclusively for commercial customers

Please use the watchlist to send us your inquiry. Please indicate whether you are a private customer or a commercial customer. Private customers can also contact our dealers directly.

Variations
SKU Length (mm) Voltage Light colour
0148 500 12 Volt/DC cool white Add to watchlist
0149 500 24 Volt/DC cool white Add to watchlist
0157 955 12 Volt/DC cool white Add to watchlist
0158 955 24 Volt/DC cool white Add to watchlist
0125 977 ML 12 Volt/DC cool white Add to watchlist
0166 1410 12 Volt/DC cool white Add to watchlist
0167 1410 24 Volt/DC cool white Add to watchlist
Additional information
  • Power (watts)

    12, 18, 6

  • Lumen

    1200, 400, 800

  • Length (mm)

    1410, 500, 955

  • Voltage

    12 Volt/DC, 24 Volt/DC

  • Light colour

    cool white, warm white

  • Shape

    angular

  • Design

    Surface-mounted lighting fixture

  • Switch

    no

  • Protection class

    IP67

  • CRI

    >80

  • Lifetime

    L70 / 50.000 Std.

  • Dimmable

    no

  • Night light

    no

  • Housing colour

    eloxiert

  • Material housing

    Aluminium

  • CE Certified

    yes

  • Installation method

    Screws

  • Width (mm)

    22.5

  • Height (mm)

    8.3
