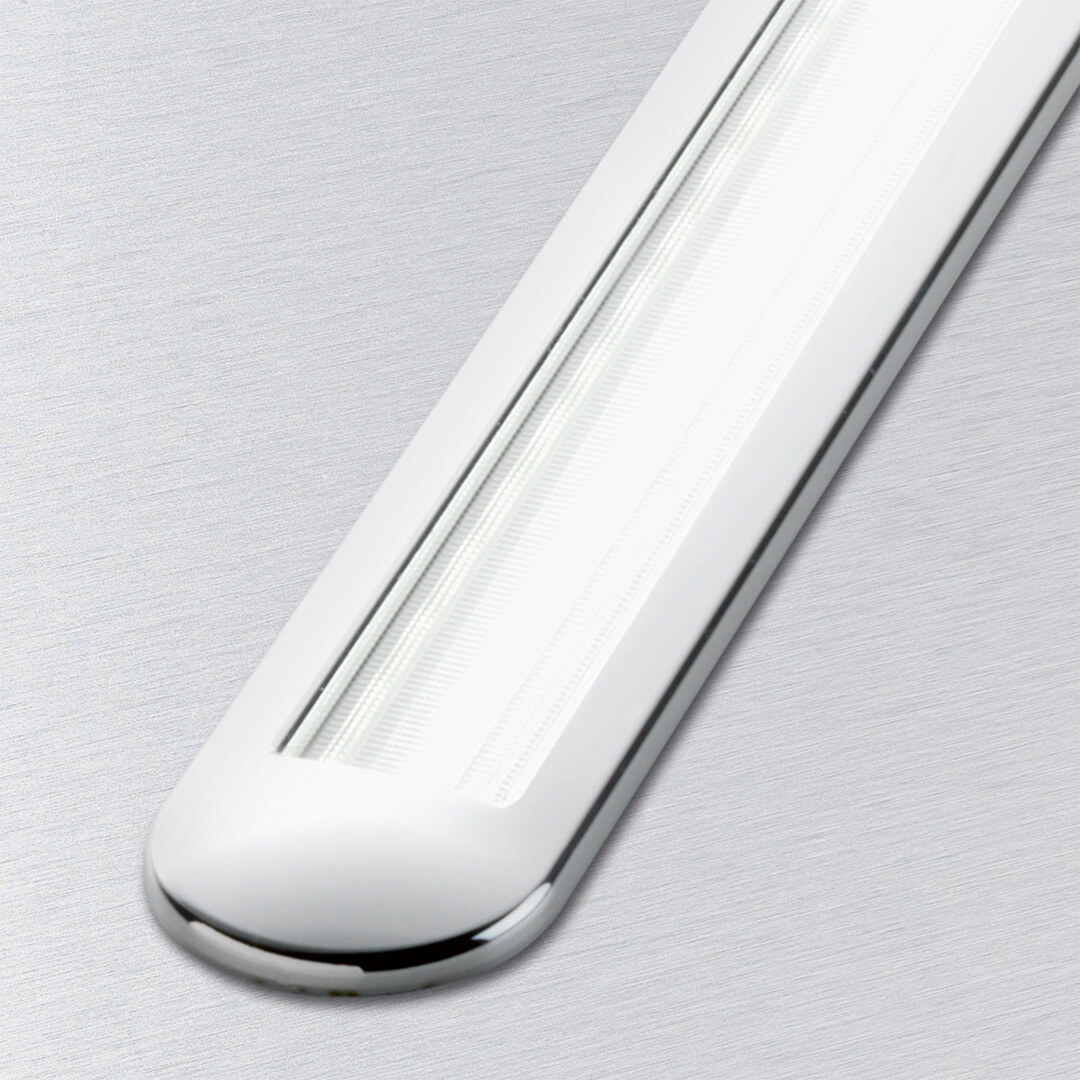

F-20 LED Einbaustreifenleuchte chrom

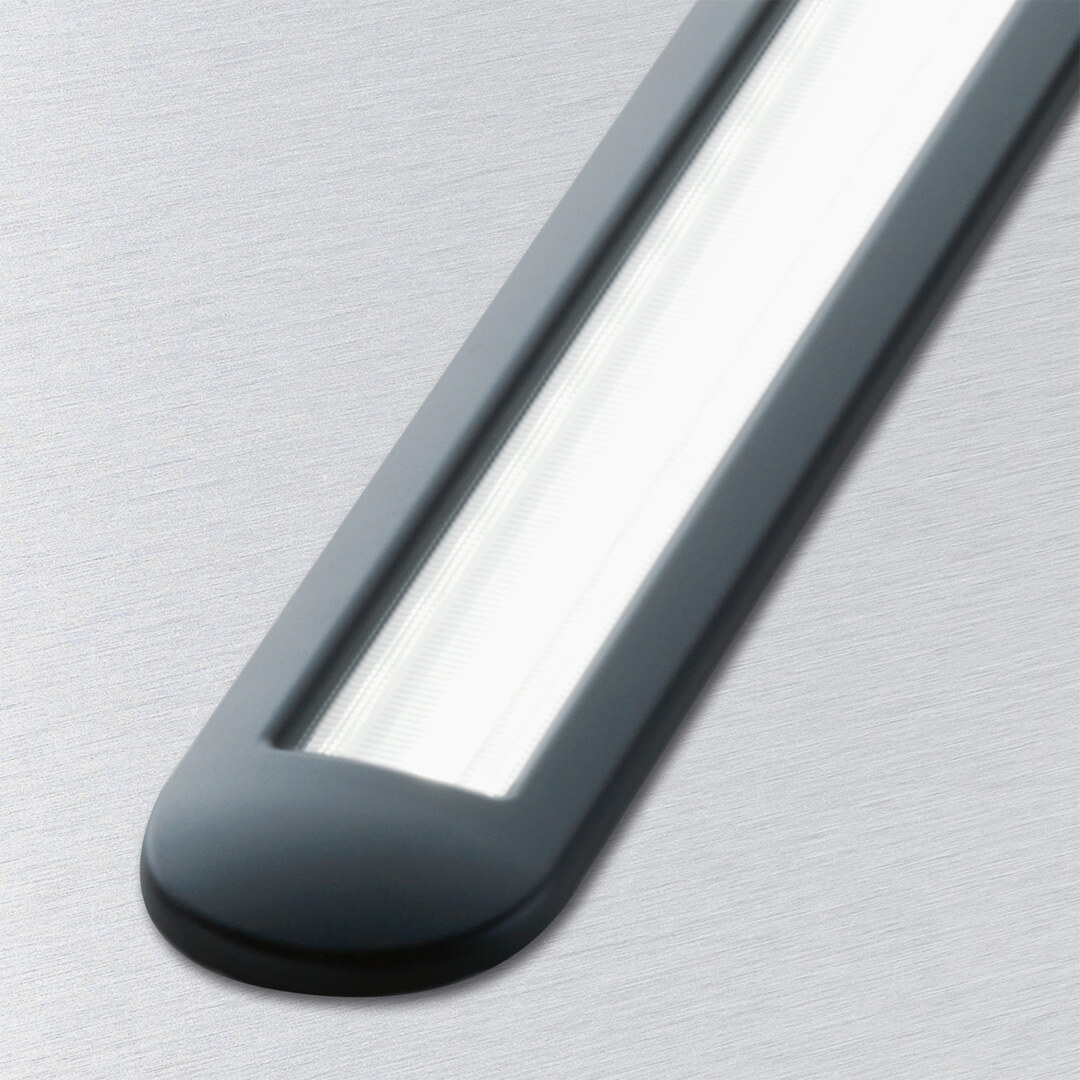

F-20 LED Einbaustreifenleuchte schwarz

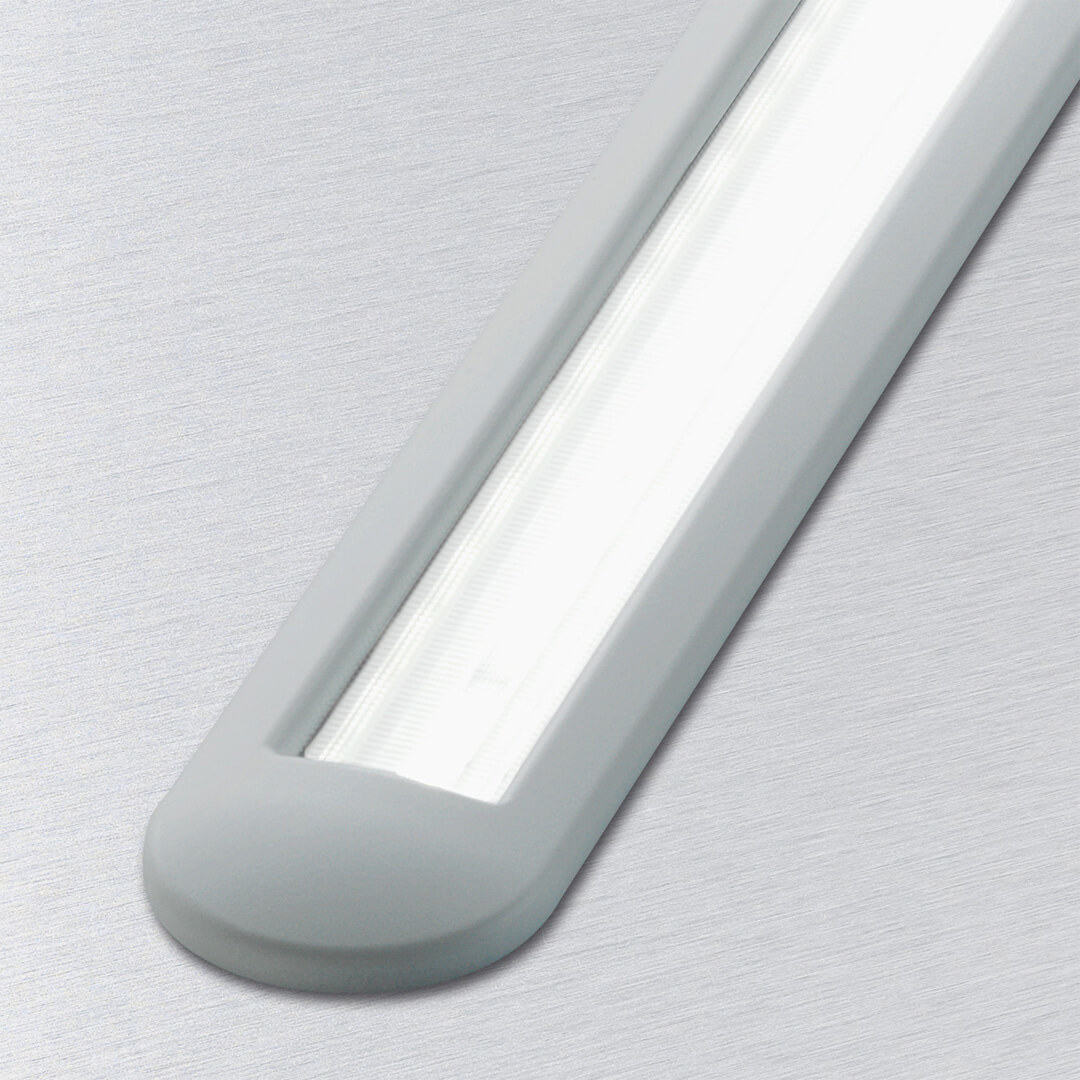

F-20 LED Einbaustreifenleuchte grau

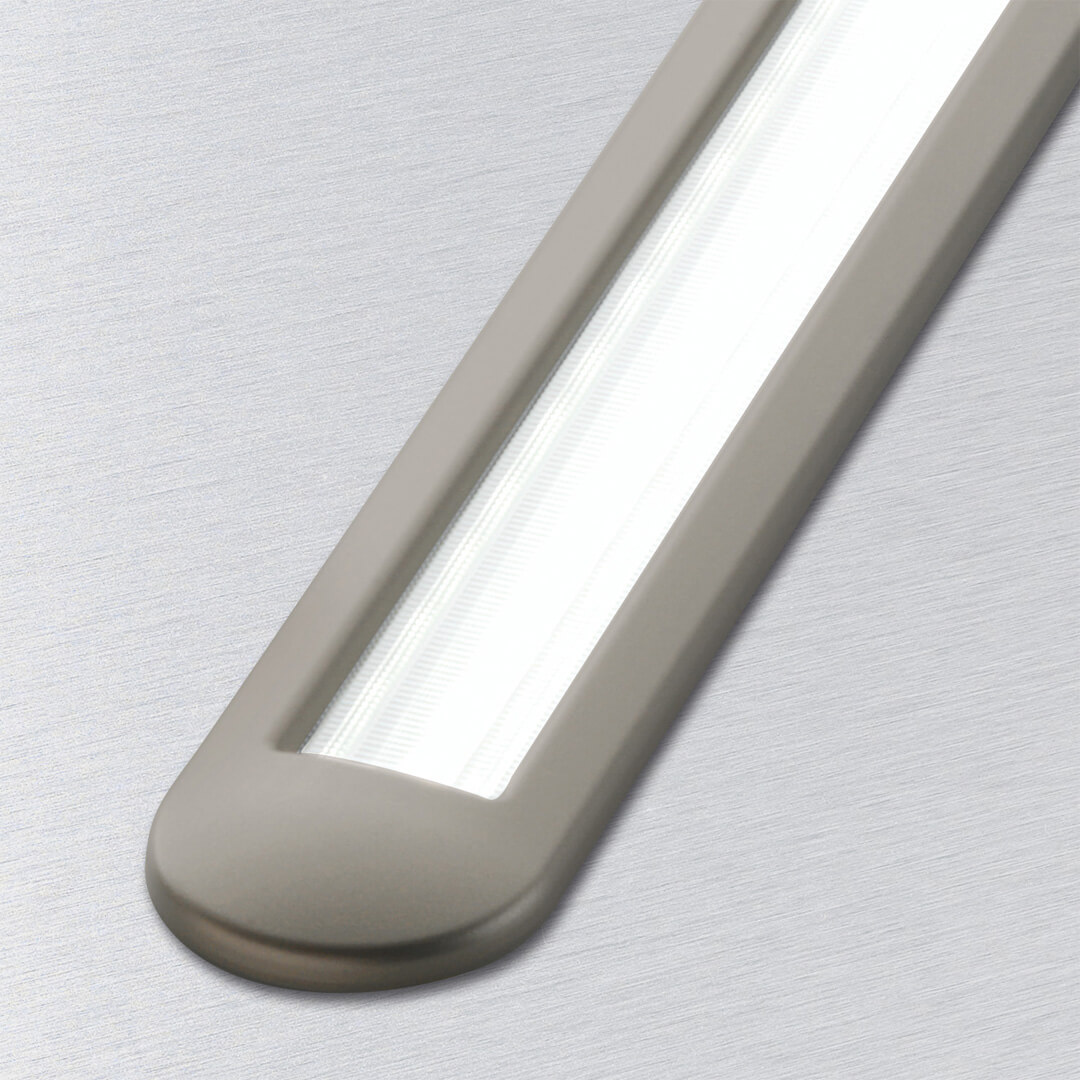

F-20 LED Einbaustreifenleuchte nickel
F-20 LED Einbaustreifenleuchte RGB blau

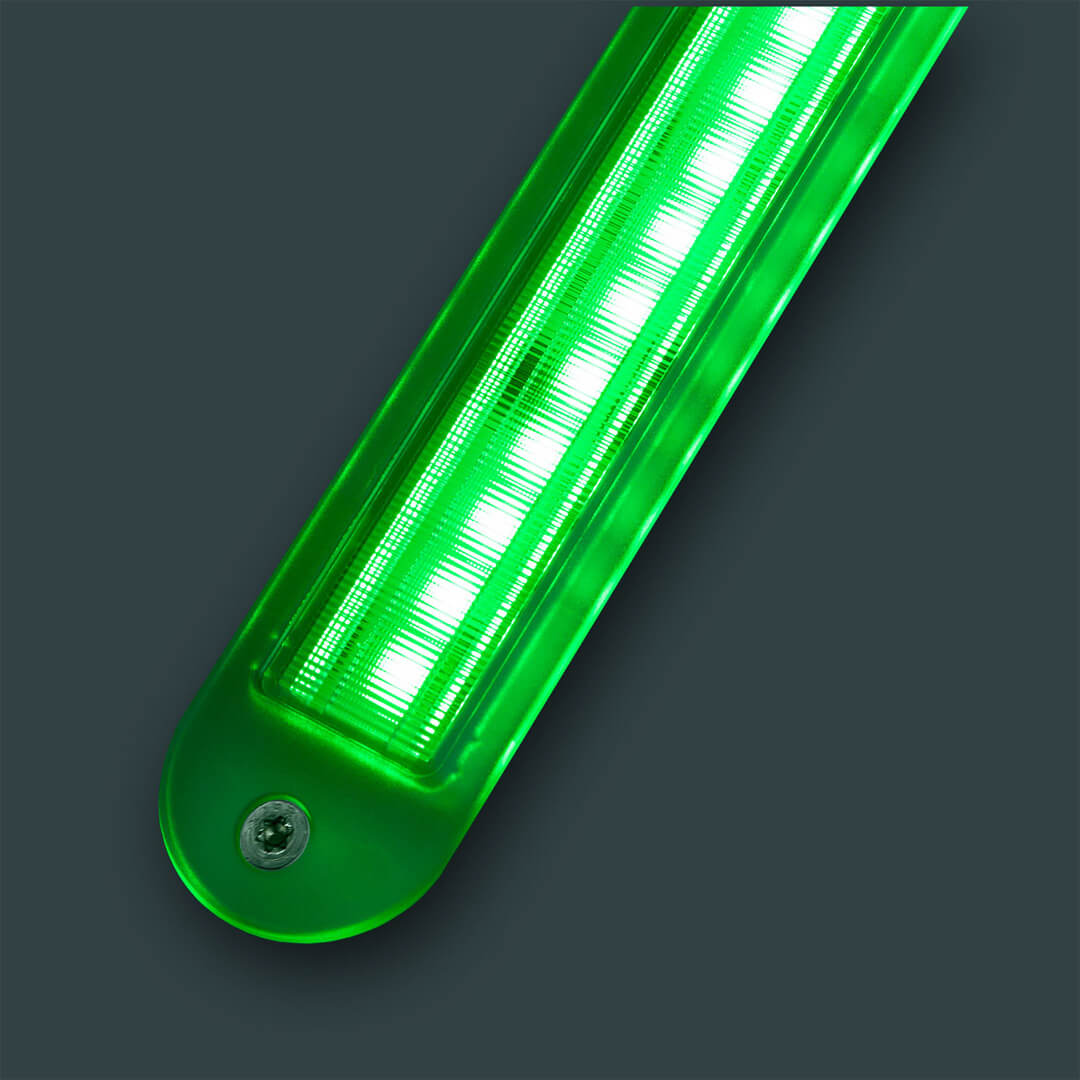

F-20 LED Einbaustreifenleuchte RGB grün

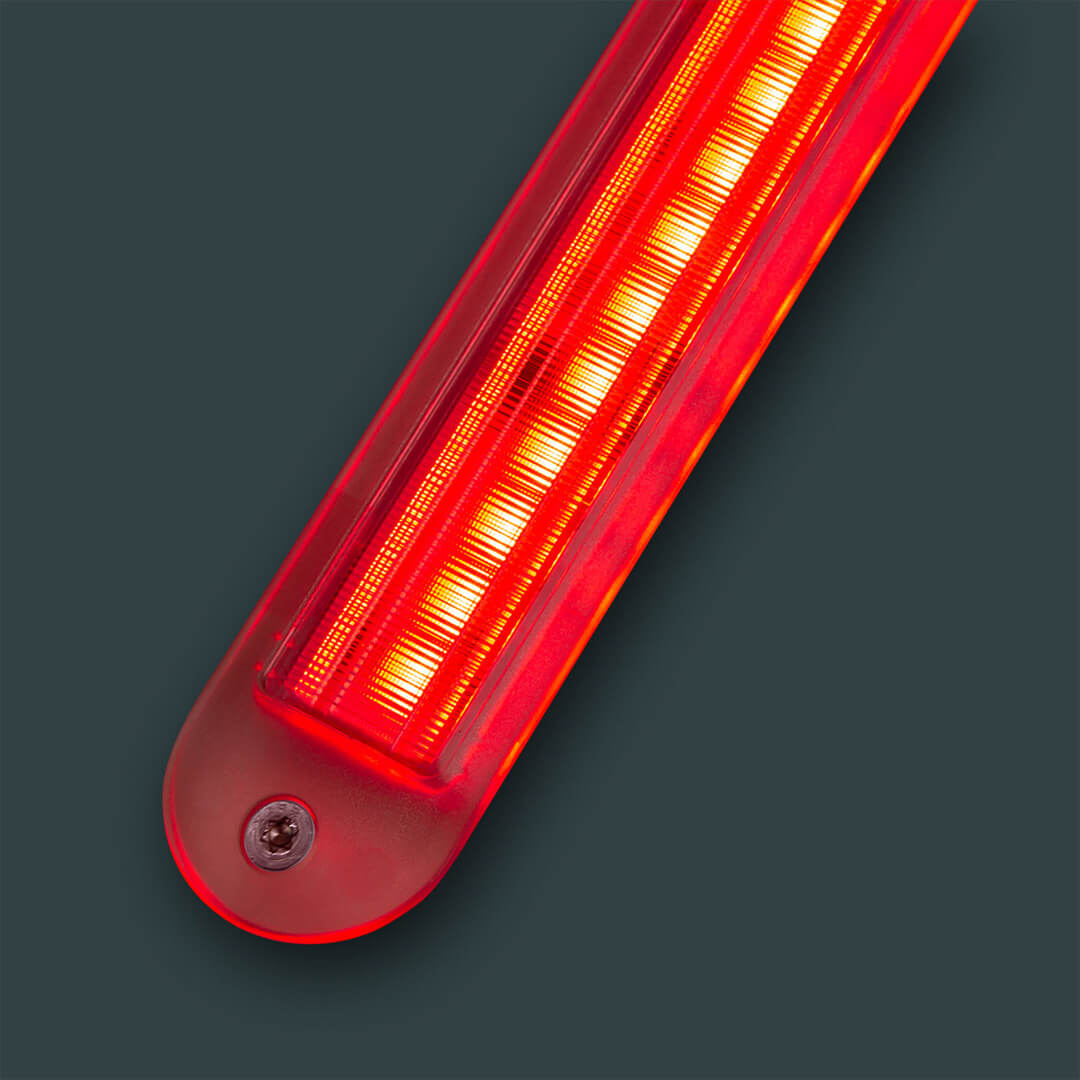

F-20 LED Einbaustreifenleuchte RGB rot

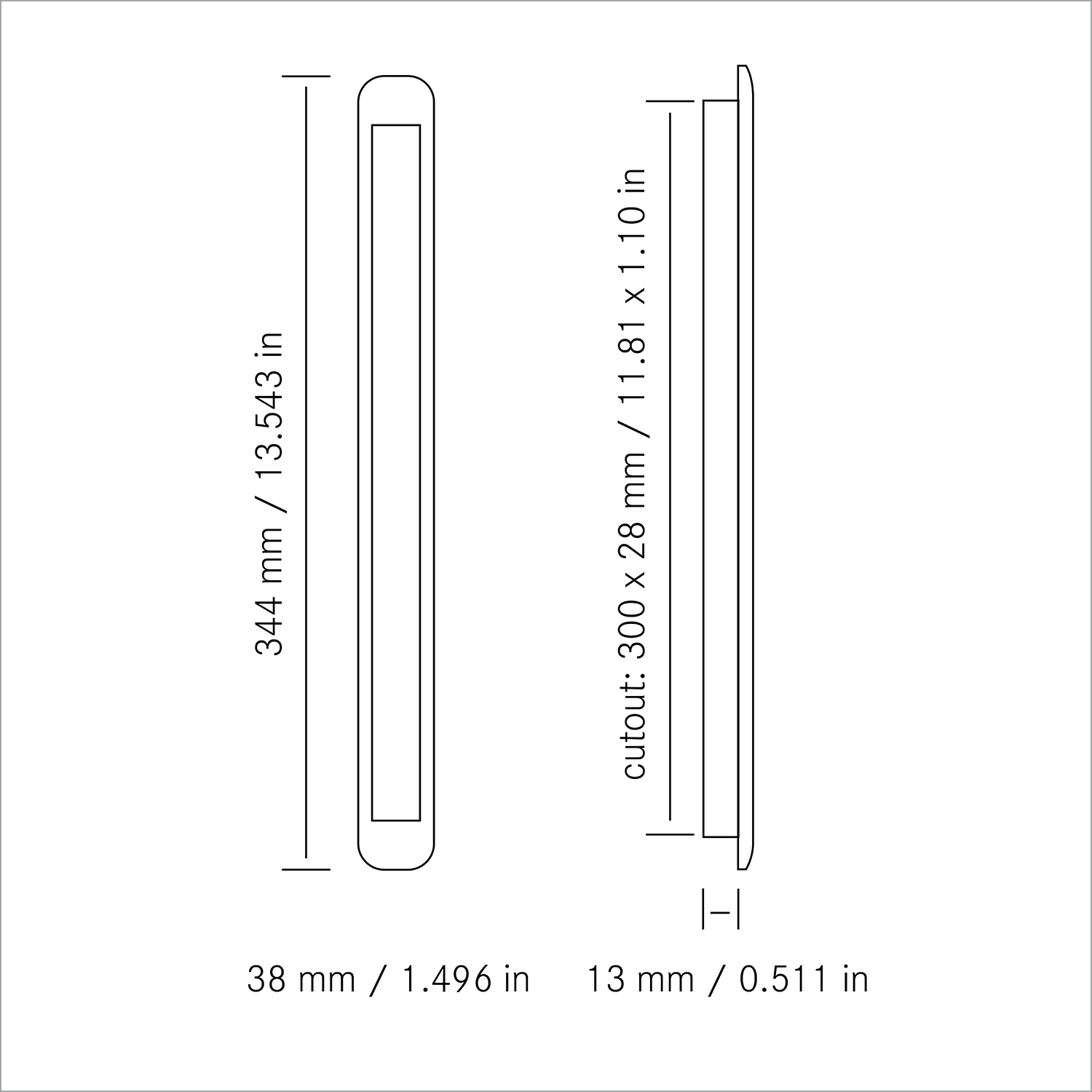

F-20 Zeichnung

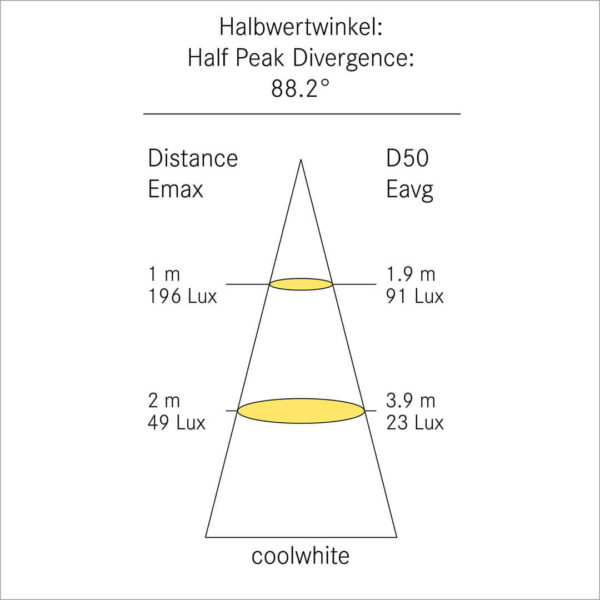

F-19 Lichtverteilungskurve

F-20 LED strip light

Categories: ,

The F-20 LED strip light is the perfect solution for a wide range of lighting requirements. Thanks to its flat design and low installation depth, it is particularly well-suited for use in vehicle interior installations, where space is often limited.

RGB+W Version for Information

With the optionally available RGB-W version, you can utilize the F-20 RGB-W variant as a passenger information system, for example when boarding and exiting buses. This provides an effective way to convey important information.

Versatile and Powerful Lighting Solution

The F-20 LED strip light is highly versatile and powerful, making it easy to adapt to various applications. With its slim build and the option for interchangeable frames, it is the optimal choice for vehicle interior installations. Experience the flexibility and quality of the F-20 LED strip light for yourself.

Customizable Appearance

What sets the F-20 LED strip light apart is its adaptability to the desired appearance. With optionally available interchangeable frames, it seamlessly integrates into any interior. Whether you prefer a subtle or striking appearance, the F-20 can be perfectly tailored to your style. We are also happy to equip our lights with the appropriate cables or connectors for OEM customers. Please feel free to contact us.

Highlights

+  24 LEDs provide a lot of light
+  Powerful 700 lumens of light output
+  Dimmable via external PWM signal
+  Variants available with touch switch
+  RGB-W version

Clear
SKU: F-20 Categories: ,
Exclusively for commercial customers

Please use the watchlist to send us your inquiry. Please indicate whether you are a private customer or a commercial customer. Private customers can also contact our dealers directly.

Variations
SKU Light colour Switch Dimmable
7165 cool white no no Add to watchlist
7245 cool white Touch Sensor no Add to watchlist
7174 warm white no no Add to watchlist
7246 warm white Touch Sensor no Add to watchlist
7173 warm white no Signaldim Add to watchlist
7164 cool white no Signaldim Add to watchlist
Additional information
  • Light colour

    cool white, warm white

  • Switch

    no, Touch Sensor

  • Dimmable

    no, Signaldim

  • Shape

    angular

  • Design

    Recessed lighting fixture

  • Power (watts)

    8

  • Lumen

    700

  • Protection class

    IP50

  • CRI

    >80

  • Lifetime

    L70 / 50.000 Std.

  • Night light

    no

  • Housing colour

    klar

  • Material housing

    Polycabonat

  • Connection cable

    200mm 0,5cm²

  • CE Certified

    yes

  • Installation method

    Screws

  • Length (mm)

    344

  • Width (mm)

    38

  • Weight (grams)

    196

  • Made in Germany

    Ja

  • Voltage

    10-30 Volt/DC

Downloads
F-20_Datenblatt
